SKU
752458

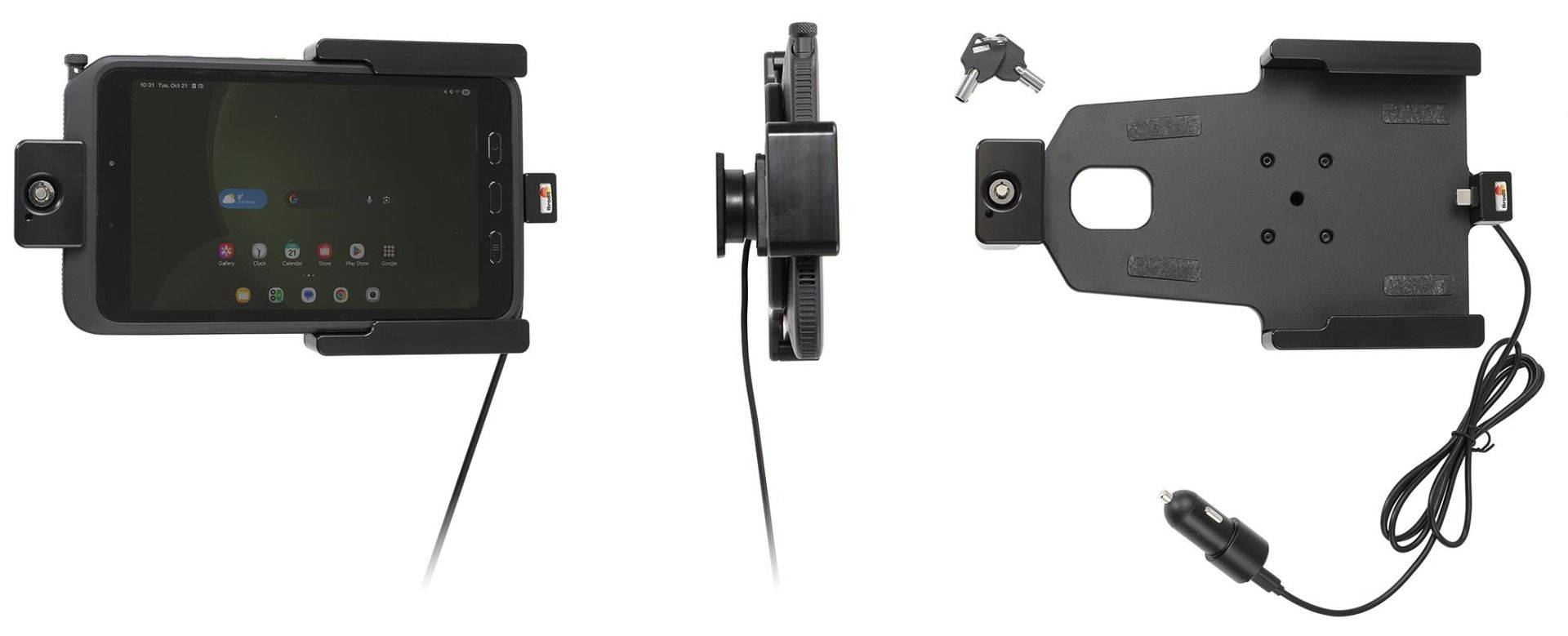

Brodit AH Samsung Tab Active 5 USB zig.stecker Schloss

148,95 €
Auf Lager
-
+
  • Schneller Versand
  • Hochwertige Produkte
  • Sichere Zahlung
Details

This holder is to be used when you will secure your device and still have it easy accessable. Perfect for use in stores, at exhibitions and any place where you want to use your device without having it easy removable. In order to remove the unit  from the holder you need the key or a certain amount of violence is required. The holder includes a lock and two keys.



Keep your unit's battery fully charged in an active holder, always within easy sight and reach! Neat, discreet and convenient. Custom made with a perfect, firm fit. With USB-C cable with cig-plug adapter, choose to connect either to the vehicle's USB-C outlet or the 12/24V socket. The cig-plug adapter has two USB ports: USB-A and USB-C. USB-A (free for power supply of additional device) and USB-C (connected to the holder). You have full access to the camera and all buttons when the device is in the holder. It is easy to slide the device into place in the holder so it connects to the charging, and to take it out of the holder when leaving the car.



The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. For easy and optimal installation, attach the holder onto a custom ProClip Vehicle Mount, a Pedestal Mount or attach it directly to any surface.



Choose installation placement with care, devices must not be placed in positions where they may block the view or important controls. The cradle should only be attached onto a suitable place. Installations always take place at the customer's own discretion and responsibility.

Weitere Informationen
Weitere Informationen
Zubehörmarke Brodit
Barcode 7320287524581
Empfohlener Verkaufspreis inkl. MwSt 148,95 €
Gerät mit oder ohne Hülle miet Deckel
Haltereigenschaft Toestelspecifiek
Cable / Qi / charger type / connnector usbC + Sig plug
Gerät laden über usbC
Stromspannung 12/24V
Voltage (output) QC - QuickCharge
Max Amperage 7,0 Amp
Montage standaard AMPS
Halterschloss Ja mit Schloss
Color zwart
Produktinformation Professioneller Halter mit Drehgelenk für Ihr Smart Device. Störende Bildschirmreflexionen werden durch Einstellen des Halterungswinkels reduziert
Item Returns This item can be returned
Mehr anzeigen + Zeige weniger -
Compatibility
Mehr anzeigen + Zeige weniger -
Anweisung
Bitte vor der Montage die Anleitung aufmerksam lesen und die Bilder ansehen.   1. Die Schraube in der Mitte der Halterung lösen, so dass das Befestigungsstück auf der Rückseite entfernt werden kann.
2. Das Befestigungsstück an gewünschter Stelle anordnen. Das Befestigungsstück mit den mitgelieferten Schrauben festschrauben. Die Halterung über dem Montagestück auf die Art und Weise plazieren, dass die Schraube in dem Loch des Kugelgelenks reingeht.  Die Halterung and dem Befestigungsstück festschrauben so dass die Halterung richtig im Platz sitzt und justiert werden kann.
3. Das Gerät vorsichtig seitwärts in der Halterung schieben. Das Verschluss seitwärts an das linke Ende der Halterung schieben. Der Knopf drücken um das Verschluss zu sperren. Das Verschluss mit der beiliegenden Schlüssel öffnen. Das Verschluss seitwärts weg von der Halterung schieben um es zum entfernen. Das Gerät vorsichtig seitwärts weg von der Halterung schieben.
4. Die Halterung ist montiert. Die Halterung in die gewünschte Position justieren um zwischen Portrait und Landscape Mode zum wechseln.
